In practice, MIPS won’t halt and catch fire though. As you would expect from the design of a CPU pipeline, the CPU basically executes the branch and the delay instruction in order, as they are stored in the instruction stream, and it only delays the write to PC, i.e. The actual jump until after the delay instruction. .Compiler effectiveness for single branch delay slot: – Fills about 60% of branch delay slots – About 80% of instructions executed in branch delay slots useful in computation – About 50% (60% x 80%) of slots usefully filled CSE 240A Dean Tullsen Key Points.Hard to keep the pipeline completely full. A branch delay slot follows the instruction. Bgt s,t,addr pseudo branch if s t A branch delay slot follows the instruction. Ble s,t,addr pseudo branch if s branch delay slot follows the instruction. Blez s,addr normal branch if the two's comp. Integer in register s is branch delay slot follows the instruction.

• Mips Instruction Set Branch Delay Slot

In computer architecture, a delay slot is an instruction slot being executed without the effects of a preceding instruction. The most common form is a single arbitrary instruction located immediately after a branchinstruction on a RISC or DSP architecture; this instruction will execute even if the preceding branch is taken. Thus, by design, the instructions appear to execute in an illogical or incorrect order. It is typical for assemblers to automatically reorder instructions by default, hiding the awkwardness from assembly developers and compilers.

Branch delay slots[edit]

When a branch instruction is involved, the location of the following delay slot instruction in the pipeline may be called a branch delay slot. Branch delay slots are found mainly in DSP architectures and older RISC architectures. MIPS, PA-RISC, ETRAX CRIS, SuperH, and SPARC are RISC architectures that each have a single branch delay slot; PowerPC, ARM, Alpha, and RISC-V do not have any. DSP architectures that each have a single branch delay slot include the VS DSP, μPD77230 and TMS320C3x. The SHARC DSP and MIPS-X use a double branch delay slot; such a processor will execute a pair of instructions following a branch instruction before the branch takes effect. The TMS320C4x uses a triple branch delay slot.

The following example shows delayed branches in assembly language for the SHARC DSP including a pair after the RTS instruction. Registers R0 through R9 are cleared to zero in order by number (the register cleared after R6 is R7, not R9). No instruction executes more than once.

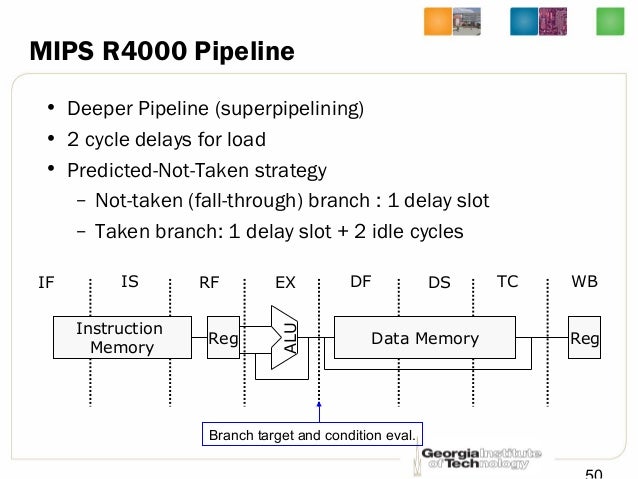

The goal of a pipelined architecture is to complete an instruction every clock cycle. To maintain this rate, the pipeline must be full of instructions at all times. The branch delay slot is a side effect of pipelined architectures due to the branch hazard, i.e. the fact that the branch would not be resolved until the instruction has worked its way through the pipeline. A simple design would insert stalls into the pipeline after a branch instruction until the new branch target address is computed and loaded into the program counter. Each cycle where a stall is inserted is considered one branch delay slot. A more sophisticated design would execute program instructions that are not dependent on the result of the branch instruction. This optimization can be performed in software at compile time by moving instructions into branch delay slots in the in-memory instruction stream, if the hardware supports this. Another side effect is that special handling is needed when managing breakpoints on instructions as well as stepping while debugging within branch delay slot.

The ideal number of branch delay slots in a particular pipeline implementation is dictated by the number of pipeline stages, the presence of register forwarding, what stage of the pipeline the branch conditions are computed, whether or not a branch target buffer (BTB) is used and many other factors. Software compatibility requirements dictate that an architecture may not change the number of delay slots from one generation to the next. This inevitably requires that newer hardware implementations contain extra hardware to ensure that the architectural behavior is followed despite no longer being relevant.

Load delay slot[edit]

A load delay slot is an instruction which executes immediately after a load (of a register from memory) but does not see, and need not wait for, the result of the load. Load delay slots are very uncommon because load delays are highly unpredictable on modern hardware. A load may be satisfied from RAM or from a cache, and may be slowed by resource contention. Load delays were seen on very early RISC processor designs. The MIPS I ISA (implemented in the R2000 and R3000 microprocessors) suffers from this problem.

The following example is MIPS I assembly code, showing both a load delay slot and a branch delay slot.
